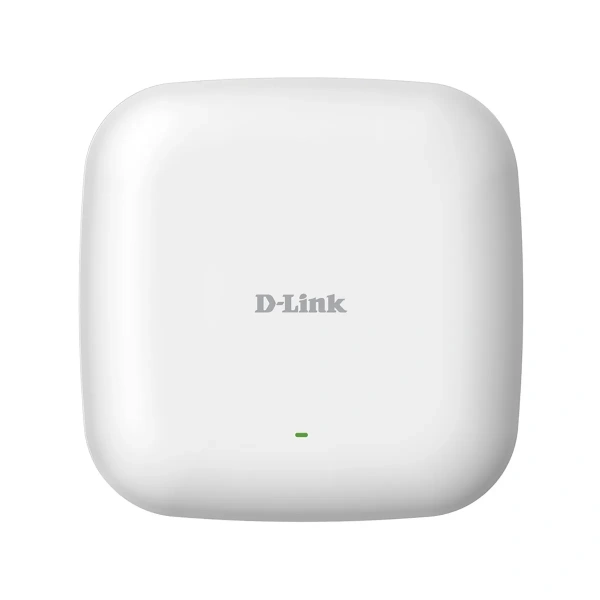

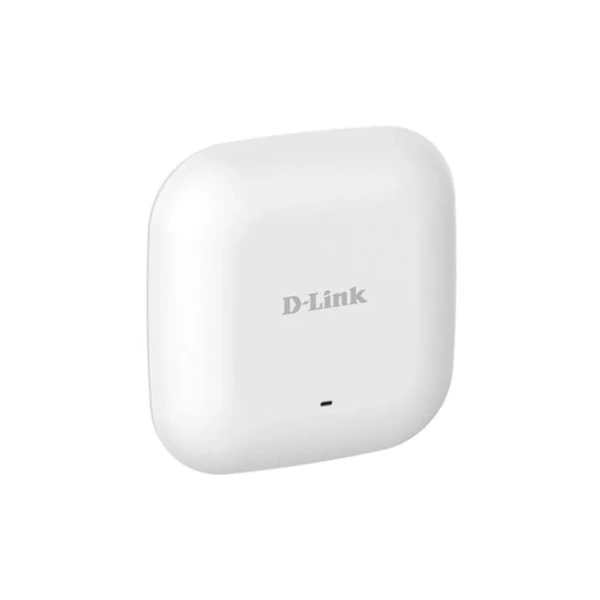

D-Link Wireless N PoE Access Point DAP-2230
The DAP-2230 Wireless N PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options. Multiple operating modes, network management tools, and security features give network administrators a wide range of choices for deploying the device, allowing for the addition of wireless network-enabled devices.
High-performance Wireless Connectivity
Extend your network and enjoy wireless speeds of up to 300 Mbps, perfect for high-demand business applications.
Strong Security and Authentication Features
Maintain a highly secure network with a range of features including WPA/WPA2, Wireless LAN segmentation, and VLAN support.
Flexible Operation
Configure to use as an Access Point, a Wireless Distribution System (WDS) with Access Point, a WDS/ Bridge, or a Wireless Client.
Fast and Efficient Wireless Performance
The DAP-2230 delivers reliable, high-speed wireless performance with maximum wireless signal rates of up to 300 Mbps1. This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2230 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2230’s web GUI using a drop-down menu option to select customized priority rules. Additionally, the DAP-2230 supports load balancing to ensure maximum performance by limiting the number of users per access point.
Robust Security
To help maintain a secure wireless network, the DAP-2230 supports both Personal and Enterprise versions of WPA and WPA2 (802.11i), with support for RADIUS server backend and a built-in internal RADIUS server allowing users to create their accounts within the device itself.
This access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to further protect your wireless network. The DAP-2230 includes support for up to eight VLANs per band for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, the DAP-2230 supports Network Access Protection (NAP), a feature of Windows Server 2008, allowing network administrators to define multiple levels of network access based on individual client’s need.
Versatile Access Point Functionality
The DAP-2230 allows network administrators to deploy a highly manageable and extremely robust wireless network with optimal wireless coverage. The DAP-2230 can be ceiling mounted, wall mounted, or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.
Multiple Operation Modes
To maximize total return on investment, the DAP-2230 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting), and Wireless Client. With WDS support, network administrators can set up multiple DAP-2230s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. The DAP-2230 also features advanced features such as load balancing and redundancy, for fail-safe wireless connectivity.
Network Management
Network administrators have multiple options for managing the DAP-2230, including web (HTTP), Secure Socket Layer (SSL), Secure Shell (SSH), and Telnet. For advanced network management, administrators can use the D-Link Central WiFi Manager to configure and manage multiple access points from a single location. In addition, the D-Link Central WiFiManager provides network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation. The DAP-2230 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power. With its high output power design, PoE support, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2230 provides small to medium business and enterprise environments with a business-class solution for deploying a wireless network.
Features
- Wireless N with speeds of up to 300Mbps
- 1x 10/100 Mbps Ethernet LAN port
- Traffic control/QoS
- Internal RADIUS server
- Supports 802.3af Power over Ethernet

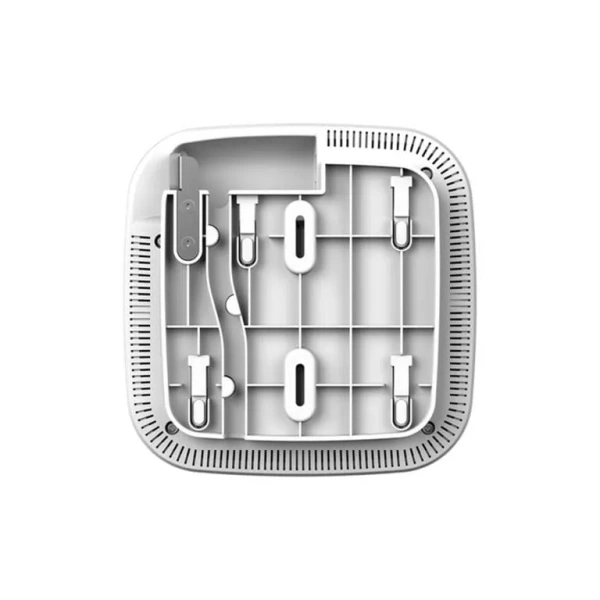

- Wall and ceiling mounting bracket included
This Access Point is Nuclias Compatible
The DAP-2230 is compatible with Nuclias from
Hardware ver: Ax
Firmware ver: 2.00
Technical Specification
Product: D-Link DAP-2230
Device Interfaces: 802.11 n/g/b wireless, 10/100BaseT Fast Ethernet LAN PoE port
Ethernet LAN data rates: 10/100 Mbit/s
Data Signal Rate: 2.40 GHz
Maximum data transfer rate: 300 Mbit/s
Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2
AC input voltage: 12 V
Input current: 1 A
Power consumption (max): 5.76 W
Product colour: White
LED indicators: Power, Status
Certification: FCC, IC, CE, UL, Wi-Fi® Certified
Antenna features: 2x Integrated antenna
Antenna gain level (max): 3 dBi
D-LINK ACCESS POINT N300 300MBPS 2.4GHZ BAND NO 5GHZ BAND 1X 10/100 NETWORK PORT(S) POE SUPPORT
