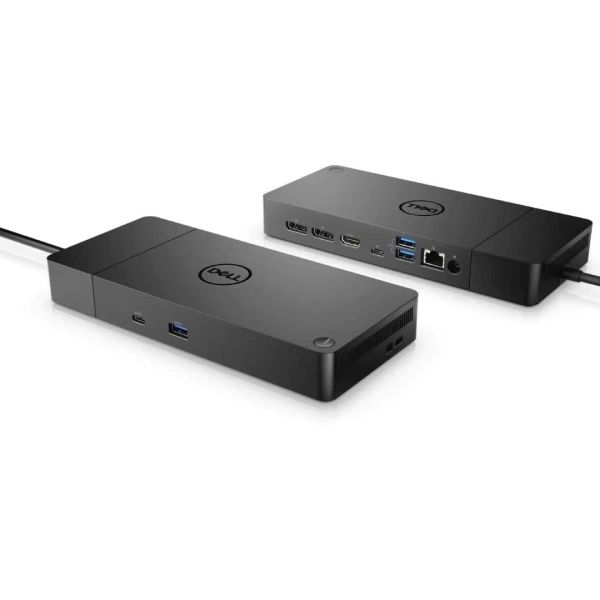

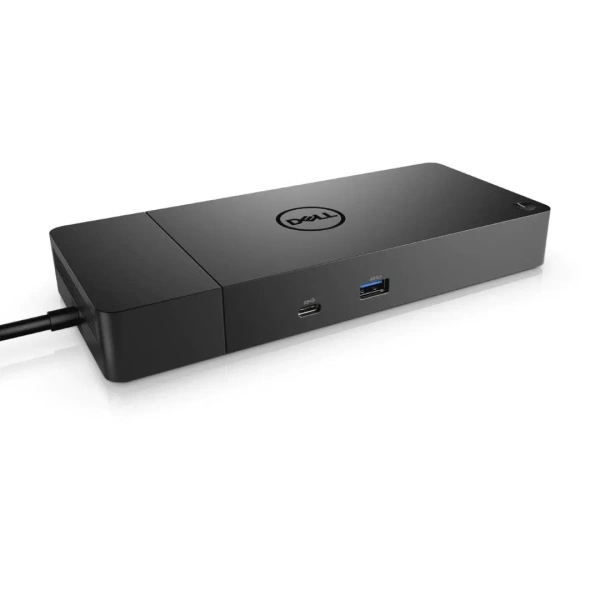

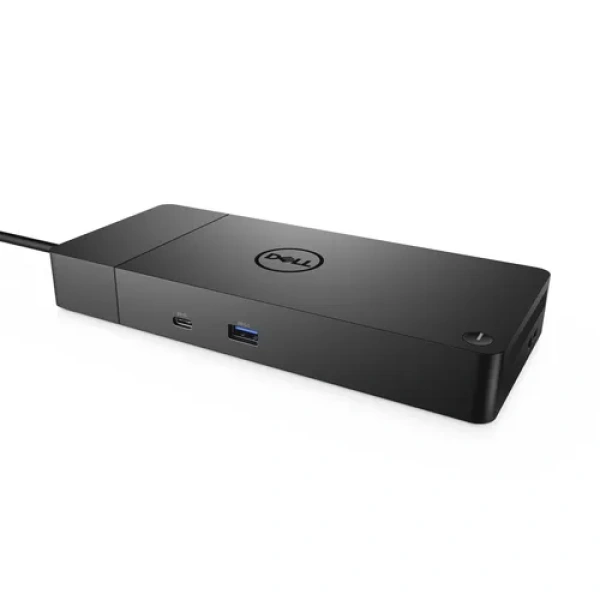

Dell WD19S 130W USB-C Docking Station 210-AZBX
Warranty: 3-year Advanced Exchange
Features
Power your connections
Power your day: Dell ExpressCharge allows you to charge up to 80% in one hour, making it the most efficient way to manage the workday.
Energize your workload: Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutes.
Unmatched charging: Increase your power delivery and charge even faster with a dock that delivers up to 90W of power with 130W power adapter.
Built for the future
Mix and match: Evolve as your needs change with our most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity: USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use.
Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers complete flexibility with the built-in one-meter cable.
Information in a flash: With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.
Optimize your workspace
Smooth and seamless: Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.
Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

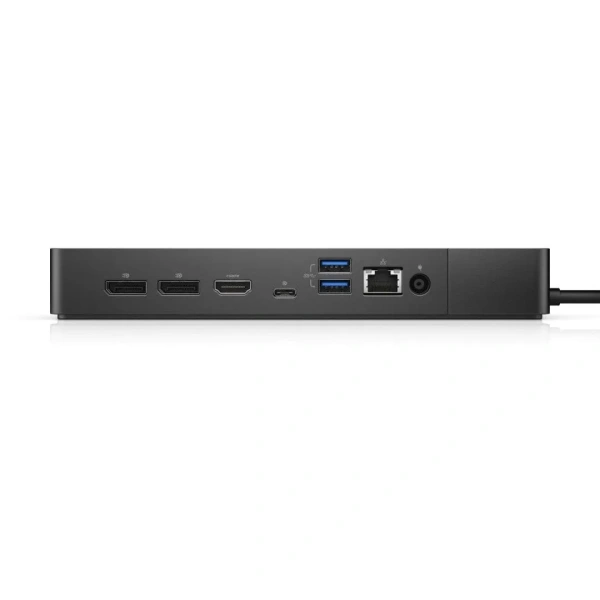

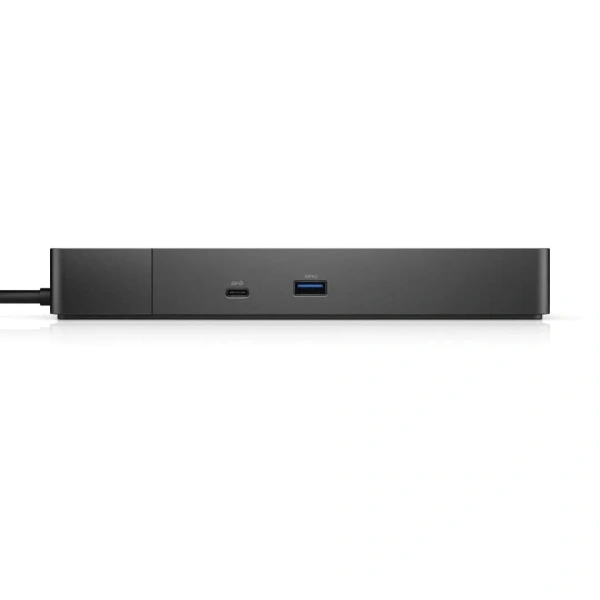

Connectivity Options
Ports & Slots:
1. USB-C 3.1 Gen 2
2. USB-A 3.1 Gen 1 with PowerShare
3. DisplayPort 1.4 (x2)
4. HDMI 2.0b
5. USB-C Multifunction DisplayPort
6. Dual USB-A 3.1 Gen 1
7. Gigabit Ethernet RJ45
8. Power In
Advanced Exchange Service
Your dock comes with a 3-year Advanced Exchange Service so that if a replacement becomes necessary, it will be shipped to you the next business day during your 3-year Limited Hardware Warranty
Technical Specification
Product: Dell WD19S 130W
Product Type: Docking station
Connectivity technology: Wired USB-C
Video Max Resolution Details:
- 4K – 60 Hz (Dual Display)
- 2560 x 1440 – 60 Hz (Triple Display)
Interfaces:
- 2 x display / video – DisplayPort – 20 pin DisplayPort
- 1 x display / video – HDMI – 19 pin HDMI Type A
- 1 x USB-C / DisplayPort
- 2 x USB 3.1 Gen 1 – 9 pin USB Type A
- 1 x USB-C 3.1 Gen 2 – 24 pin USB-C
- 1 x network – Ethernet 1000 – RJ-45
- 1 x USB 3.1 Gen 1 with PowerShare – 9 pin USB Type A
Networking Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Power: Power Adapter 130 Watt AC with up to 90 Watts power delivery, Up to 90 Watts power delivery to non-Dell systems
Cables included: 1x 1.0m USB-C cable
Product colour: Black
Warranty: 3-year Advanced Exchange
General
Product Type
Docking station
Width
20.5 cm
Depth
9 cm
Height
2.9 cm
Weight
585 g
Enclosure Colour
Black
Video
Max Resolution Details
4K – 60 Hz (Dual Display)
2560 x 1440 – 60 Hz (Triple Display)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces
2 x display / video – DisplayPort – 20 pin DisplayPort (1.4)
1 x display / video – HDMI – 19 pin HDMI 2.0
1 x USB-C 3.2 Gen 2/DisplayPort
1 x USB-C 3.2 Gen 2 – 24 pin USB-C
2 x USB 3.2 Gen 1 – 9 pin USB Type A
1 x USB 3.2 Gen 1 with PowerShare – 9 pin USB Type A
1 x network – Ethernet 1000 – RJ-45
Miscellaneous
Cables Included
1 x USB-C cable – 1 m
Features
Security lock slot (cable lock sold separately), 130W power delivery to Dell systems, 90W power delivery to non-Dell systems, wireless vPro
Security Slot Type
Noble Wedge security slot / Kensington security slot
Power
Power Device
Power adapter
Power Consumption (Max)
130 Watt
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
Power Adapter 130 Watt AC with up to 90 Watts power delivery
Up to 90 Watts power delivery to non-Dell systems
System Requirements
OS Required
Red Hat Enterprise Linux, Windows 10, Ubuntu 18.04, Windows 11
