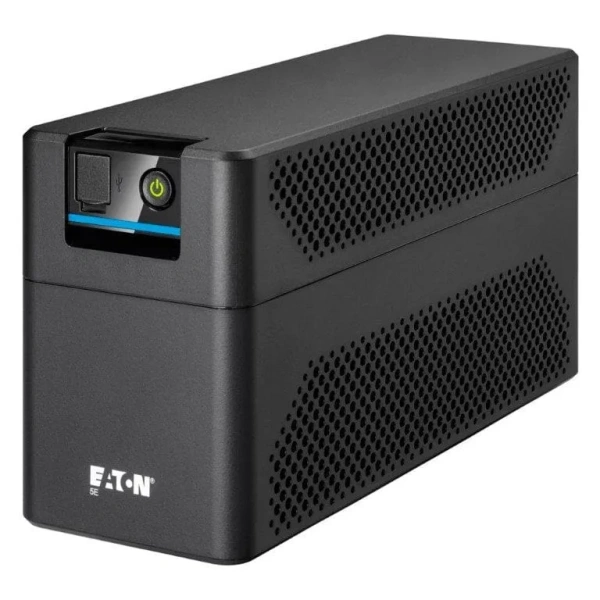

Eaton 5E Gen2 900VA 480W Line-Interactive UPS
The Eaton 5E Gen2 900VA 480W Line-Interactive UPS (Uninterruptible Power Supply) model 5E900UI is a dependable power protection solution often employed in professional and corporate settings. Here are important details about this UPS:
Capacity: This UPS boasts a capacity of 900VA (Volt-Amps) or 480W (Watts). This means it can provide backup power to connected devices with a total load of up to 480 watts.
Line-Interactive Technology: The UPS employs line-interactive technology to stabilize output voltage and safeguard against power surges and voltage fluctuations. It actively maintains a consistent power supply to connected equipment.
Battery Backup: Equipped with a built-in battery, this UPS can deliver power to connected devices during power outages or voltage drops. This feature ensures uninterrupted operation and data protection for vital equipment.
Multiple Outlets: Typically, the UPS includes multiple power outlets, allowing you to connect various devices, such as computers, servers, networking equipment, and more. These outlets often provide surge protection as well.
Monitoring and Management: Some UPS models, including the Eaton 5E Gen2 series, come with monitoring and management features. These may include USB or serial ports for connecting to a computer. This enables you to use software to monitor UPS status, configure settings, and receive alerts.
Compact Design: The UPS generally features a compact and space-saving design, making it well-suited for office environments or server rooms with limited space.
Voltage Regulation: Line-interactive UPS devices, like this one, can regulate output voltage to compensate for variations in input voltage. This ensures a stable power supply to connected equipment.
In a professional and formal tone, the Eaton 5E Gen2 900VA 480W Line-Interactive UPS (5E900UI) is a valuable asset for maintaining uninterrupted power supply in corporate settings. Its capacity, line-interactive technology, and battery backup features are crucial for protecting critical equipment from power interruptions and voltage fluctuations, thus ensuring the smooth operation of essential devices.
Specifications:
- SECONDARY FREQUENCY – MAX: 60 Hz
- WATTAGE: 480 W
- FORM FACTOR: Tower
- INCLUDES NETWORK CARD: No

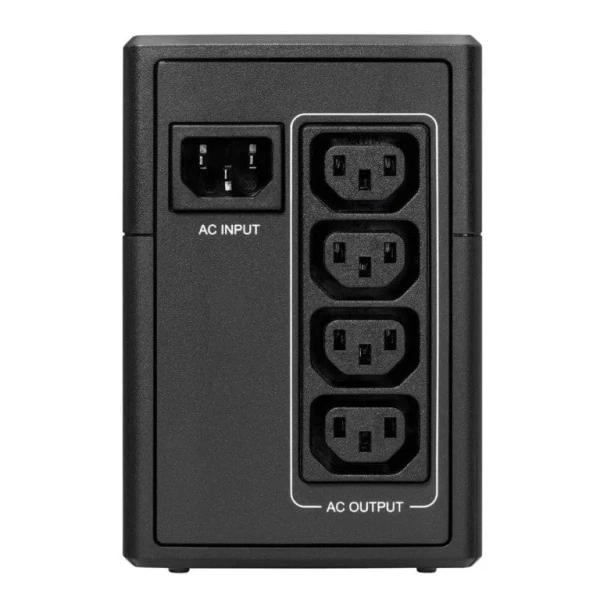

- INPUT CONNECTION: C14
- INPUT VOLTAGE – MIN: 140 V
- OUTPUT VOLTAGE – MAX: 257 V
- SECONDARY FREQUENCY – MIN: 50 Hz
- SOFTWARE COMPATIBILITY: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
- BATTERY TYPE: Sealed, lead-acid
- EFFICIENCY: 95
- CONSTRUCTION TYPE: Free standing model
- OUTPUT VOLTAGE – MIN: 195 V
- COLOR: Black
- EXTENDED BATTERY CAPABILITY: No
- OUTPUT VOLTAGE RANGE: 195-257 V
- TOPOLOGY: Line-interactive
- SURGE PROTECTION: Yes
- INPUT NOMINAL VOLTAGE: 230V default (220/230/240V)
- INPUT FREQUENCY RANGE: 45-63 Hz
- INTERNAL BYPASS: No
- INPUT VOLTAGE – MAX: 300 V
- VOLTAGE TYPE: AC
- PHASE (OUTPUT): 1
- BATTERY MANAGEMENT: Automatic battery test, deep-discharge protection, cold-start capable
- AUTO SHUTDOWN FUNCTION: Yes
- NUMBER OF OUTPUTS C13: 4
- OPERATING TEMPERATURE – MIN: 0 °C
- VA RATING: 700 VA
- POTENTIAL FREE SWITCH CONTACT: No
- RECEPTACLE: (4) C13
- PHASE (INPUT): 1
- FEED TYPE: 1
- RUNTIME GRAPH: View runtime graph
- USER INTERFACE: LEDs
- BATTERY QUANTITY: 1
- OPERATING TEMPERATURE – MAX: 40 °C
- VOLTAGE: 230V
- HOT SWAP POWER: No
- TEMPERATURE RANGE: 0° to 40°C (32° to 104°F)
- ETHERNET INTERFACE: No
- COMMUNICATION: USB port (HID compliant)
- RELATIVE HUMIDITY: 0-90% non-condensing
- OUTPUT APPARENT POWER: 700 VA
- RACK MOUNTING KIT: No
- OUTPUT FREQUENCY: 50/60 Hz
- TYPE OF INTERFACE: USB
- PRIMARY FREQUENCY – MIN: 45 Hz
- BATTERY RATING: 12 V / 9 Ah
- TYPE: UPS
- OUTPUT NOMINAL VOLTAGE: 230V
- EXPANSION SLOTS: No
- INPUT VOLTAGE RANGE: 140-300 V
- NOMINAL FREQUENCY: 50/60 Hz
- PRIMARY FREQUENCY – MAX: 63 Hz
