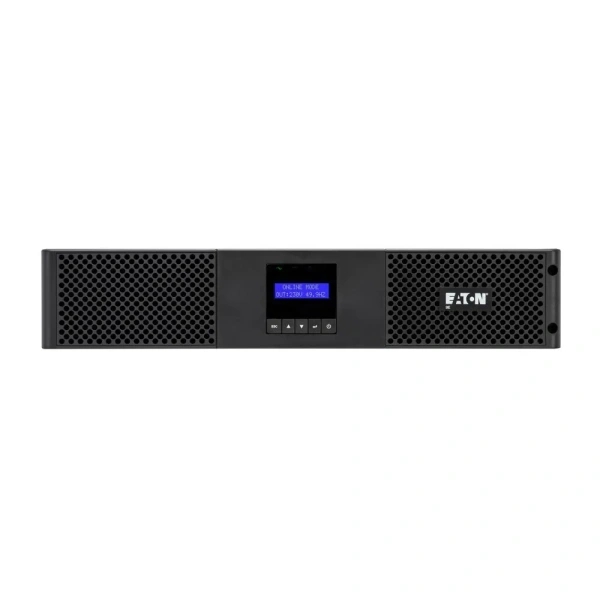

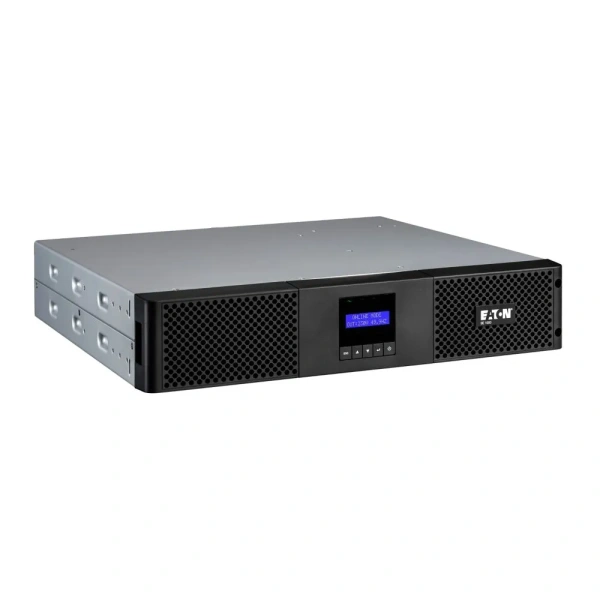

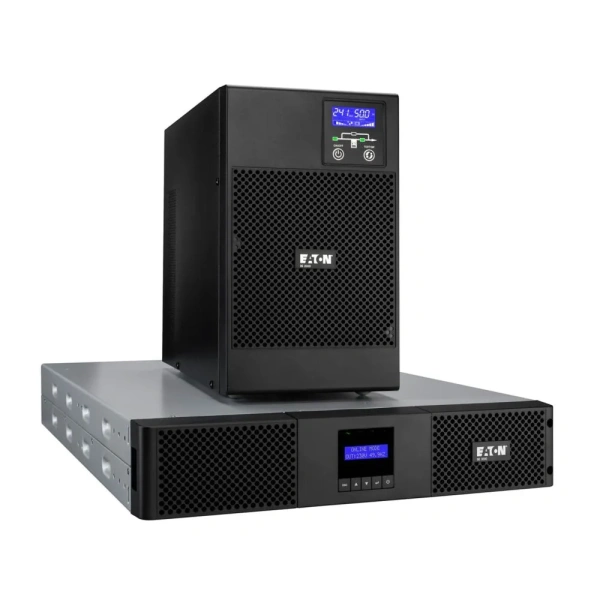

Eaton 9E1000IR 1kVA 900W Double-conversion Online UPS
The Eaton 9E high performance online double conversion UPS provides reliable protection and backup power for infrastructure, industry and healthcare, IT or telecommunications. It continuously monitors the power supply conditions, regulates the voltage and frequency of the electrical network. The static bypass enables operation to be maintained even in the event of an internal fault. The LCD display provides clear information about the status of the UPS unit and measurements on one screen. The UPS 9E offers a serial interface, USB and a slot for an add-on card. The UPS is also compatible with Eaton IPM Editions software, which enables the integration of all major operating systems, leading virtualization environments and cloud orchestration tools.
General

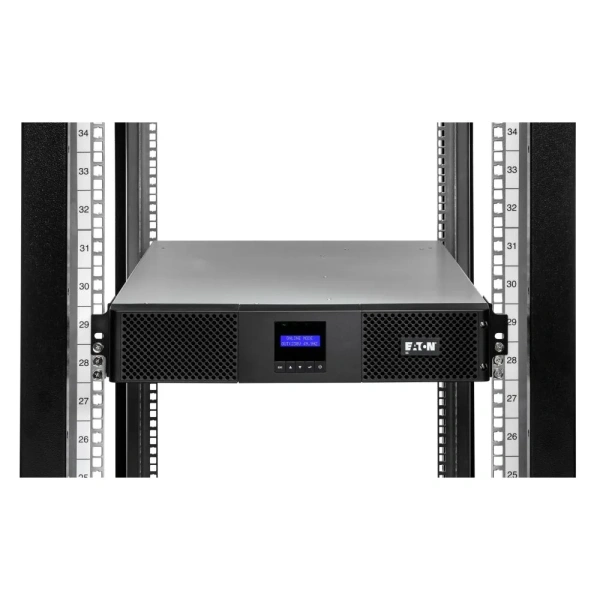

Configuration: Rack 2
Type number: 9E1000IR
Load (VA/W): 1000/ 900
Efficiency: up to 91% in online mode

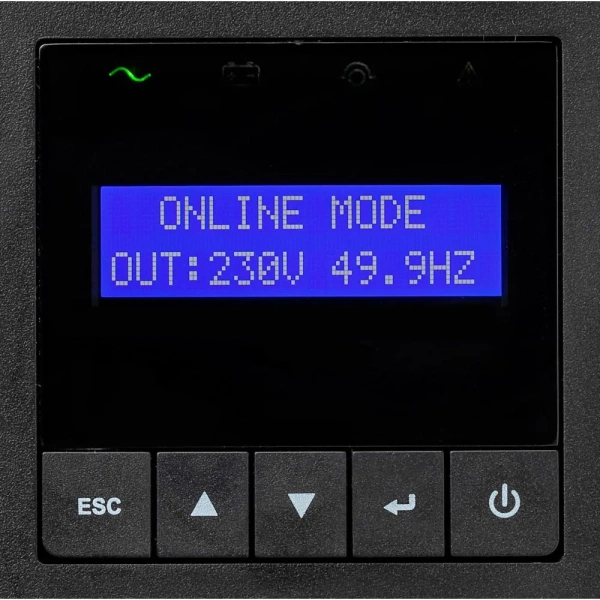

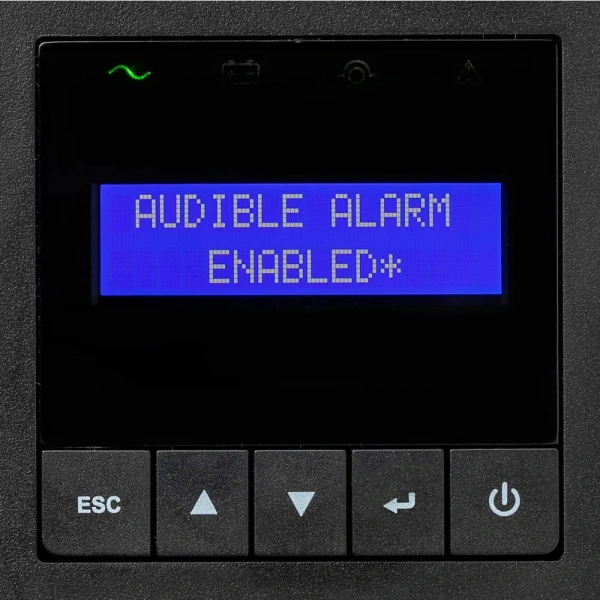

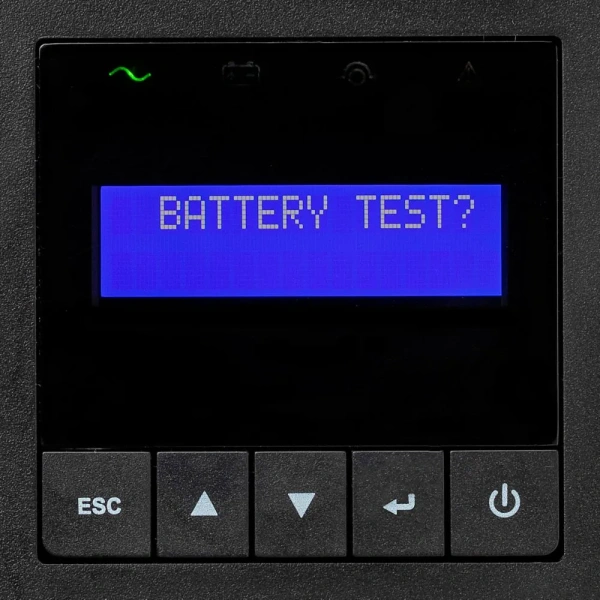

User interface: LCD display
Communication ports
- 1x USB
- 1× RS-232 (USB port and RS-232 cannot be used at the same time)
- 1x slot for an additional card
Dimensions: 438 x 438 x 86.5 mm
Weight: 17.6 kg
Entry
Input connection: 1× IEC C14
Rated Voltage: 208/220/230/240V
Frequency: 50/60 Hz
Frequency range: 40-70 H
Output
Output sockets: 4× IEC C13
Effective factor: 0.9
