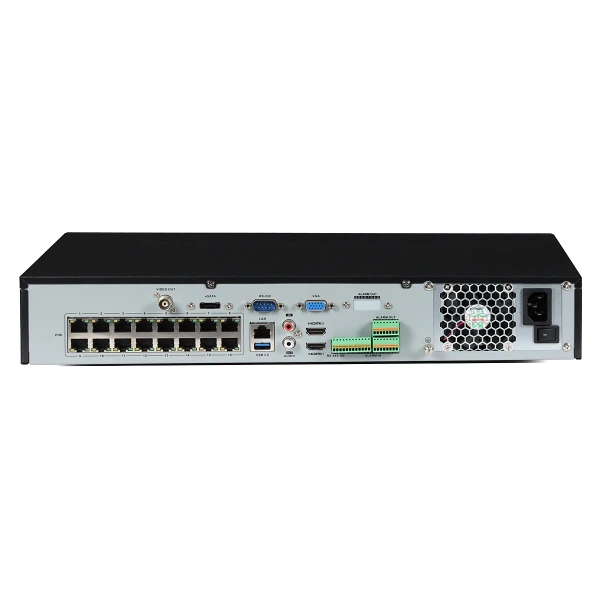

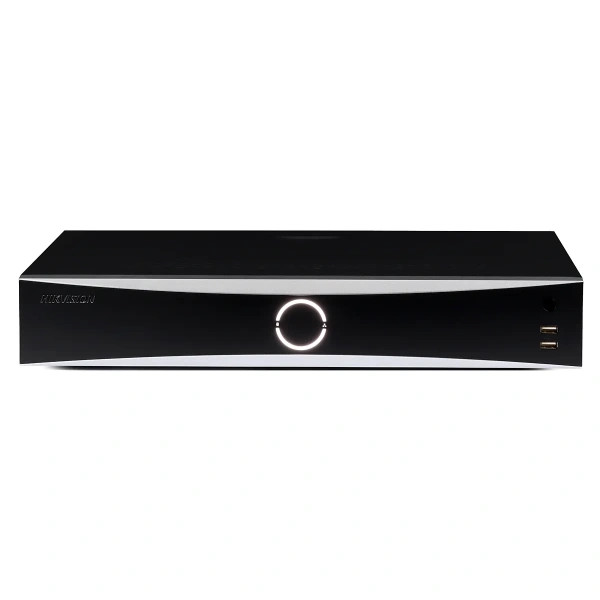

Hikvision 7700 Pro Series 32-ch AcuSense NVR 4K with 16-ch PoE DS-7732NXI-I4/16P/S
Hikvision DS-7732NXI-I4/16P/S is a modern, 32-channel IP recorder, recording image from IP cameras with a resolution of 12 MP. It has a built-in 16-port PoE switch for direct connection and supplying of IP cameras. Independent HDMI (resolution up to 4K) and VGA (resolution up to 1080p) allow you to connect two monitors.
The view on each can be configured independently, different window divisions and are possible and the image from any camera can be displayed on each of them. 4 SATA ports enable connection of hard drives with a capacity of up to 10 TB each. If the memory is full, automatic overwriting is triggered to prevent the loss of the latest data. The built-in USB ports allow you to connect a USB flash drive or external disk and copy specific fragments to external data carriers.
The recorder supports the AcuSense technology, which allows you to filter human/vehicle type objects. For cameras with a resolution of up to 2 MP not supporting AcuSense, this function can be performed by the recorder. When cameras with AcuSense are connected to the recorder, they will work with all channels with the maximum supported resolution. Thanks to accurate recognition capability, the system can filter out almost all false alarms. The recorder has also the option of face analysis and detection, which can work in 4 channels. It is possible to create up to 16 face libraries based on which the control will be performed.
The ability to compare faces allows you to quickly find a specific person (perimeter protection and face analysis cannot work in parallel). Support for cameras dedicated to identifying license plates ANPR, PTZ cameras, VCA analysis and the possibility of integration with cash registers using POS allows the recorder to be used for projects with various advancement levels. Intelligent options for searching and analyzing recordings allow you to quickly extract a fragment of interest from the recorded footage.
NOTE! Current software version is available here
Key features
- Recording resolution up to 12 MPix,
- Resolution of independent video outputs: HDMI (4K/30/60 Hz)/VGA (1080p/60 Hz),
- BNC output with resolution 4CIF,
- Max total bandwidth (input/output): 256 / 256 Mb/s,
- Support of up to 32 IP Hikvision cameras or other via Onvif,
- Built-in 16-port PoE switch,
- Support for 4 SATA HDDs with a capacity of 10 TB (total of 40 TB),
- AcuSense image analysis in 4 4 channels (for cameras without AcuSense),
- Support for AcuSense cameras in all channels,
- AI functions: perimeter protection, face detection, object classification (human, vehicle),
- Support for cameras with built-in VCA,
- Supported compression H.265 (+)/H.264 (+)/MPEG4,
- Support for: ANR, POS (integration with cash registers),
- Audio I/O for two-way communication,
- Alarm I/O: 16 / 4,
- 2 x USB 2.0, 1 x USB 3.0,
- 1 x eSATA, 1 x RS-485, 1 x RS-232, 1 x KB (keyboard),
- Ethernet ports: 1 x Rj-45 10/100/1000 Mb/s,
- Application for a PC iVMS-4200 and smartphone Hik-Connect (Andriod, iOS),
- Access via P2P.
- 32-ch 1U 16 POE AcuSense 4K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
- Up to 32-ch IP camera inputs
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
- Up to 16-ch 1080p decoding capability
- Up to 256 Mbps incoming bandwidth
HIK 32CH ACUSENSE NVR 16POE 4SATA
