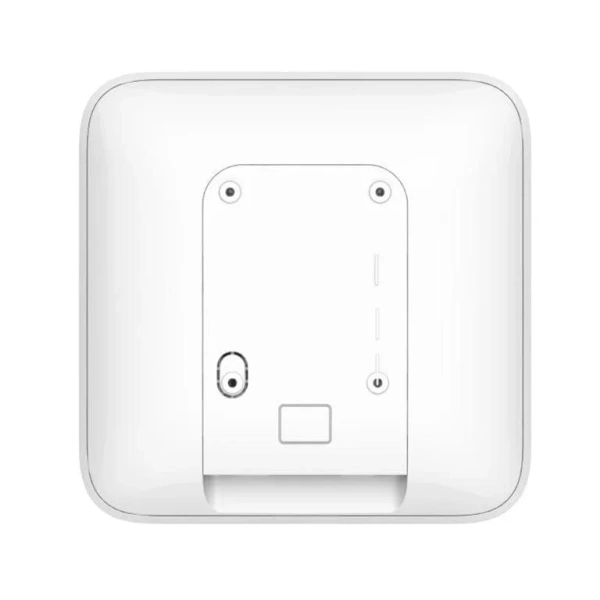

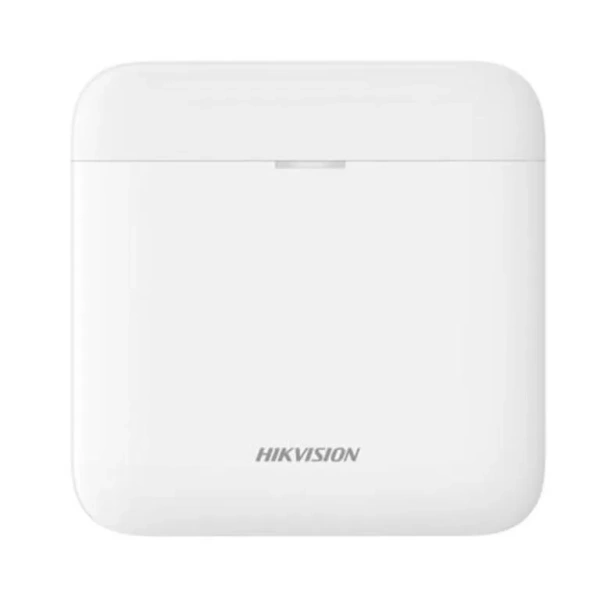

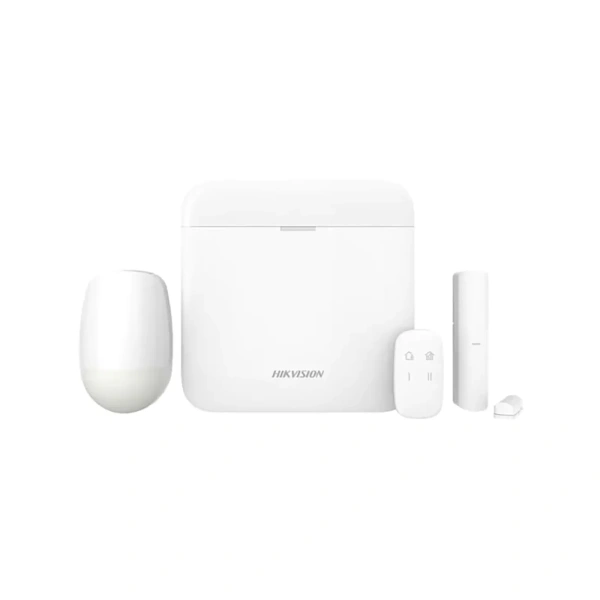

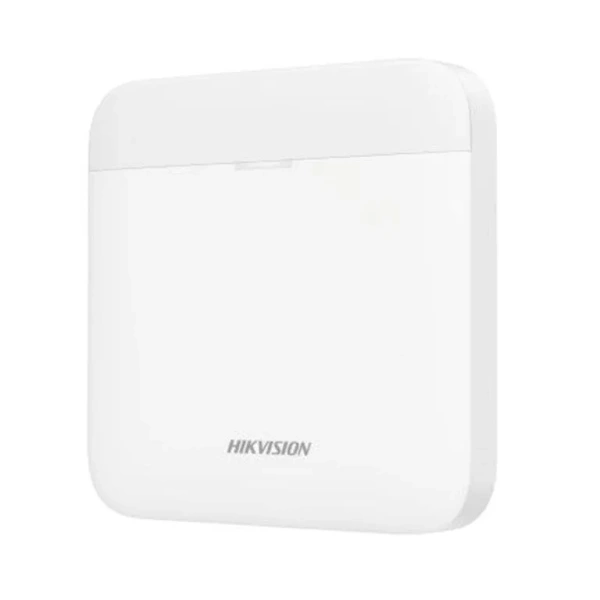

Hikvision AX Pro 868MHz Wireless Alarm Control Panel with IP, Wi-Fi and GPRS Network DS-PWA64-L-WE
Features
- TCP/IP, Wi-Fi, and GPRS network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
- Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Specification
Software features
- Diagnostics via the APP or Web: Supported
- Installer: 1
- Installer APP for programming: Supported
- Web server for maintenance (offline configuration): Supported
- Wi-Fi standard: Supported
- Arm modes: Away/Stay
- Firmware upgrade: APP/Web Portal
- Admin: 1
- Wired network: Supported
- Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Forced arming with open zones: Supported
- Memory log stored: 5000
- User: 30
- User APP for operating: Supported
- Voice prompt: Supported
- Area: 16
- Automatic arm/disarm timers: Supported
Hardware features
- RS232 output: Supported
- SIM slot: Single
- GPRS on board: Supported
- Loudspeaker built in: Supported
Electrical characteristics
- Battery type: Built in on board Battery Li
- Power supply: Built in power supply
- Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wireless transmission
- RF frequency: 868 Mhz
- Wireless security: Frequency Hoping 128 AES Encryption
Display
- LEDs status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
- Shell material: Plastic
- Colour: White
- Weight: 557.5 g
Device management
- Tag: 32
- PIR cam: Supported
- Zones: 64 (up to 48 PIRCAMs)
- Keypad: 8 (including tag reader)
- Wireless sounder: 4(2 internal+2 external)
- Wireless repeater: 2
- Keyfob: 32
