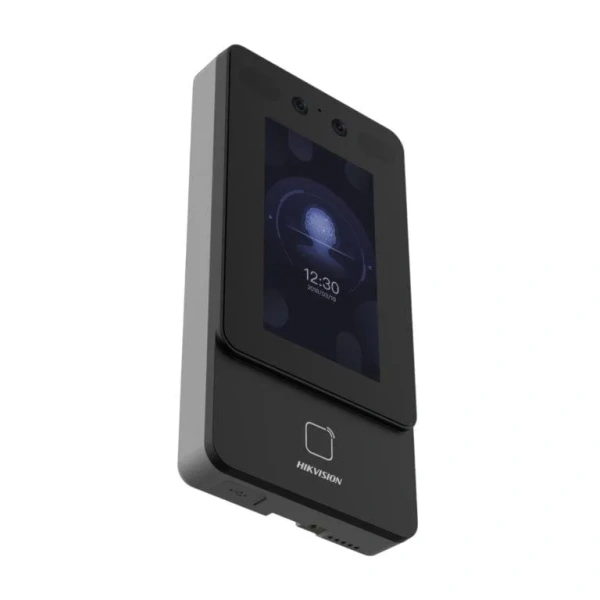

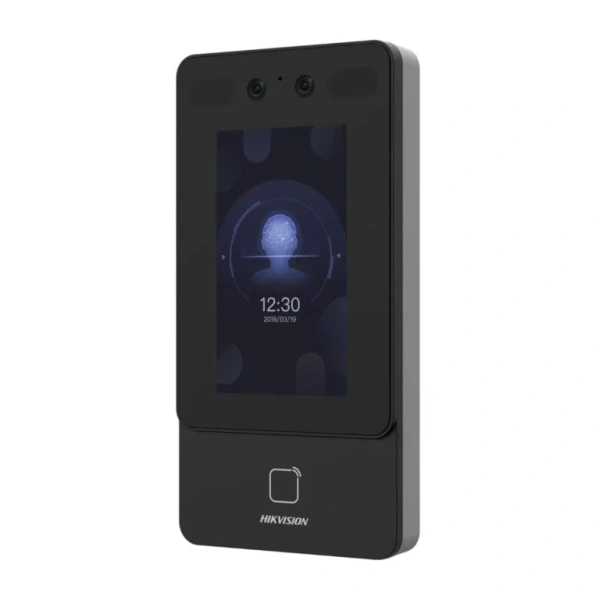

Hikvision Face Recognition Access Control Terminal DS-K1T342MWX-E1
Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card authentication, etc.
It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.
Features
- Max.1500 faces capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
- Supports face with mask recognition
- Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
- Supports platform-applied personal PIN and device-set personal PIN
Technical Specification
System
- Operation System: Linux
Display
- Dimensions: 4.3-inch
- Resolution: 272 x 480
- Type: LCD
- Operation Method: Capacitive touch screen
Video
- Pixel: 2MP
- Lens: 2x
- Video Standard: PAL (Default) and NTSC
Network
- Wired Network: 10/100Mbps self-adaptive
- Wi-Fi: Support
Interface
- PoE: IEEE802.3at, standard PoE
- Network Interface: 1
- RS-485: 1
- Wiegand: 1
- Lock Output: 1
- Exit Button: 1
- Door Contact Input: 1
- TAMPER: 1
- USB: 1
Capacity
- Card Capacity: 3,000
- Face Capacity: 1,500
- Event Capacity: 150,000
Authentication
- Card Type: M1 card
- Card Reading Frequency: 13.56 MHz
- Face Recognition Duration:＜ 0.2 s
- Face Recognition Accuracy Rate:＞99%
- Face Recognition Distance: 0.3 to 1.5 m
General
- Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
- Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
- Dimensions: 91.3 mm x 181.3 mm x 24.5 mm
- Installation: Wall Mounting
- Protective Level: IP65
Function
- Face Anti-Spoofing: Support
- Audio Prompt: Support
- Time Synchronization: Support
