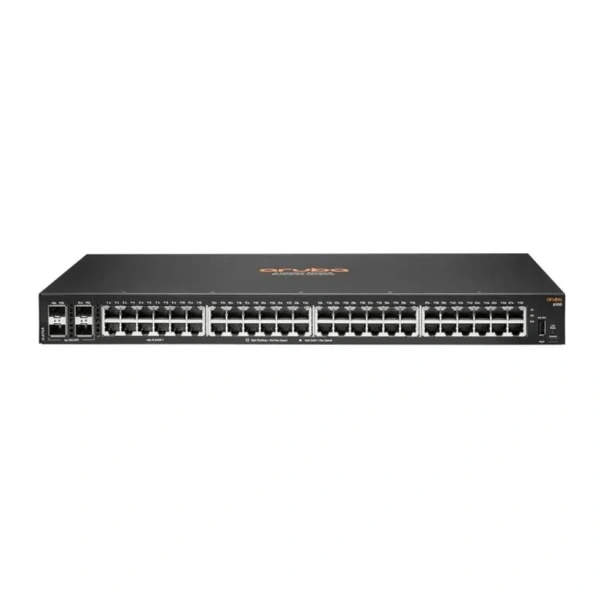

HPE Aruba 6100 48-ports Managed L3 Gigabit Ethernet 1U Network Switch Black JL676A
Aruba 6100 48G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise
Entry Level Aruba CX Access Layer Switches
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Using Aruba AOS-CX operating system across HPE Aruba Networking CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Software-defined ready with REST APIs for fine-grained programmability of network tasks.
Features:
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 8192 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
Specifications:
- Aruba 6100 48G 4SFP+
- Switch type: Managed
- Switch layer: L3
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 8192 entries
- Switching capacity: 176 Gbit/s
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE
- Rack mounting
- Form factor: 1U
- Device Type : Switch – 52 Ports – Managed – Stackable
- Enclosure Type : Side To Side Airflow Rack-mountable 1u
- Subtype : 10 Gigabit Ethernet
- Ports : 48 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
- Performance : Switching Capacity: 176 Gbps ¶ Throughput: 98.6 Mpps ¶ Latency (1 Gbps): 1.9 Μs ¶ Latency (10 Gbps): 1.8 Μs
- Capacity : Switched Virtual Interfaces (svis): 16 ¶ Arp Entries: 1024 ¶ Ipv4 Routes (unicast): 512 ¶ Ipv6 Routes (unicast): 512 ¶ Igmp Groups: 512 ¶ Mld Groups: 512 ¶ Ipv4 Acl Entries (ingress): 256 ¶ Ipv6 Acl Entries (ingress): 128 ¶ Mac Acl Entries (ingress): 256
- Mac Address Table Size : 8192 Entries
- Routing Protocol : Igmpv2, Igmpv3
- Encryption Algorithm: Ssl
- Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
- Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
compliant Standards ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3az - Processor : 1 X Arm A9: 1.016 Ghz
- Ram : 4 Gb Ddr3 Sdram
- Flash Memory : 16 Gb
Expansion / Connectivity :
Interfaces : - 48 X 10/100/1000 Base-t Rj-45
- 4 X 1/10gbit Lan Sfp+
- 1 X Usb-c Console
- 1 X Usb Type A
HP Aruba 6100 48G 4SFP+ Switch
