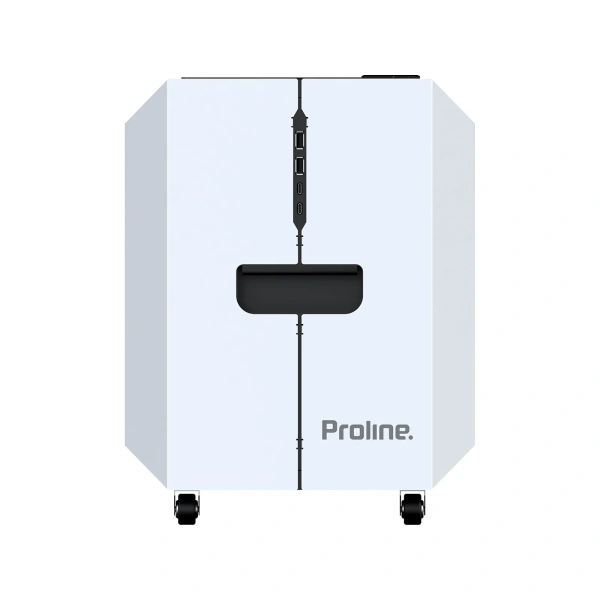

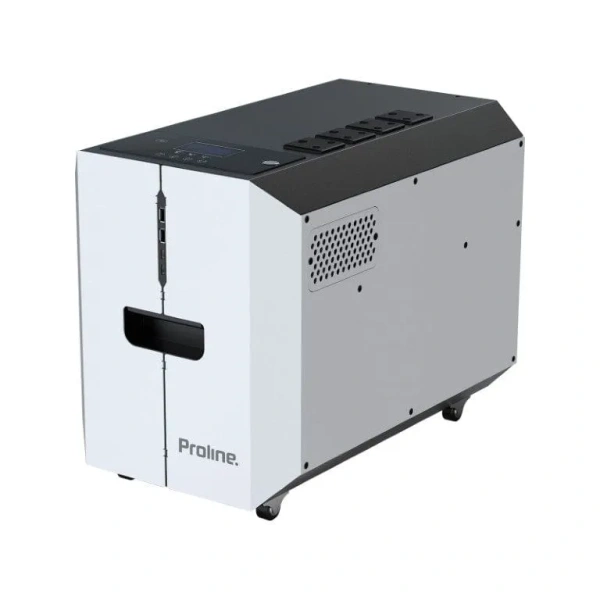

Proline 1200VA 1200W Mobile Power Station PPPS12K
The Proline 1200VA 1200W Mobile Power Station, with the model number PPPS12K, is a robust and portable power solution designed to provide reliable electricity for various applications, especially in situations where access to mains power is limited or unavailable.
Technical Specification
Rated Inverter Power: 1200VA/1200W
Input
Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (for Computers) ; 90-280 VAC (for Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Output
AC Voltage Regulation (Batt. Mode): 230VAC ‡ 5%
Surge Power: 2400VA
Efficiency (Peak): 90% ~ 93%
Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
Outlets: 4x South Africa
Output Connectors – USB Ports: 2x Type A (QC 3.0, 18W x 2) , 2x Type C (PD 3.0, 65W x2)
Solar Charger & AC Charger
Solar Charger type: –
Maximum PV Array Power: 2000W
MPPT Range @ Operating Voltage: 60-300 VDC
Maximum PV Array Open Circuit Voltage: 350 VDC
Maxmum Solar Charge Current: 30A
Maximum AC Charge Current: 30A
Maximum Charge Current: 30A
Battery
Energy: 768Wh LIFPO
Nominal Voltage: 25.6 VDC
Full Charge Voltage (FC): 29.2V
Full Discharge Voltage (FD): 20V
Typical Capacity: 30Ah
Max Continuous Discharging Current: 60A
Max Discharging Current: 65A
Protection: BMS
Maximum Charge Current: 30A (1C)
Inner Resistance: –
Lifecycle: 3000 cycles, 0.5C charging/discharging
Physical
Dimension (D x W x H): 450 x 280 x 330 mm
Net Weight: 20kg
PROLINE PORTABLE POWER 1200VA 1200W
Exclusive to PackardSA
