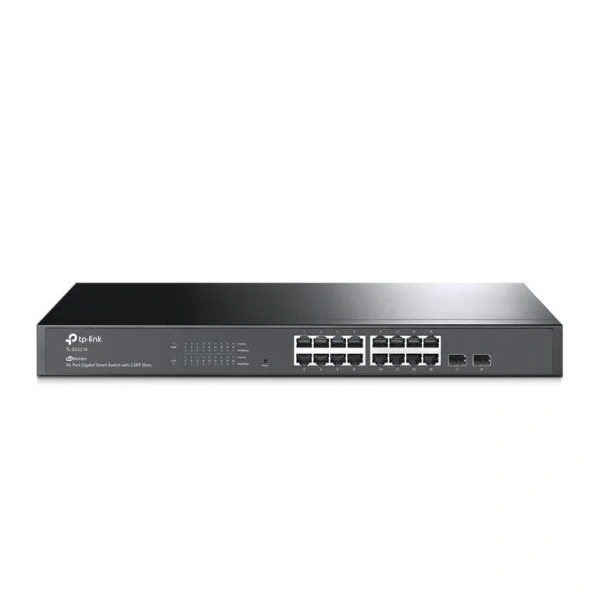

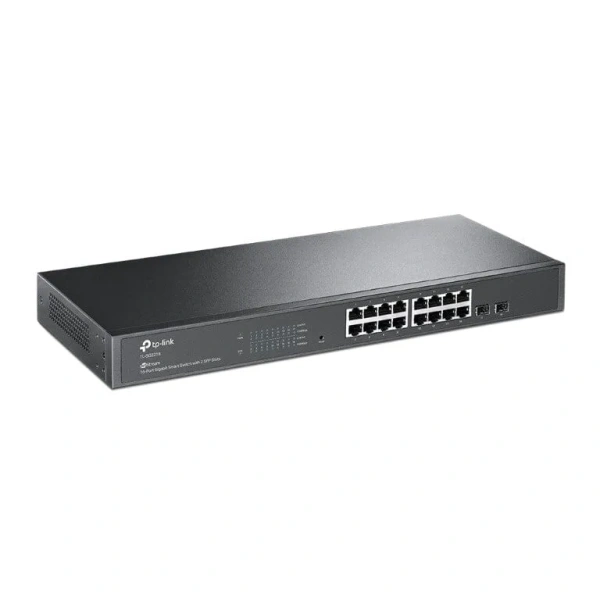

Convenient Gigabit Switch for a Complete Omada Network JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots Software Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network, all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID.

Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Specifications:

Interface

• 16× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots

Fan Quantity

Fanless

Power Supply

100-240 V AC~50/60 Hz

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

12.3 W (220 V/50 Hz)

Max Heat Dissipation

41.97 BTU/hr

PERFORMANCE

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.8 Mpps

MAC Address Table

8K

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling

– SP (Strict Priority)

– WRR (Weighted Round Robin)

– SP+WRR

• Bandwidth Control

– Port/Flow based Rating Limiting

• Smoother Performance
• Action for Flows

– Mirror (to supported interface)

– Redirect (to supported interface)

– Rate Limit

– QoS Remark

L3 Features

• 16 IPv4/IPv6 Interfaces
• Static Routing

– 48 static routes

• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay

L2 and L2+ Features

• Link Aggregation

– Static link aggregation

– 802.3ad LACP

– Up to 8 aggregation groups and up to 8 ports per group

• Spanning Tree Protocol

– 802.1d STP

– 802.1w RSTP

– 802.1s MSTP

– STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

• Loopback Detection

– Port-based

– VLAN based

• Flow Control

– 802.3x Flow Control

– HOL Blocking Prevention

• Mirroring

– Port Mirroring

– CPU Mirroring

– One-to-One

– Many-to-One

– Tx/Rx/Both

L2 Multicast

• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping

– IGMP v1/v2/v3 Snooping

– Fast Leave

– IGMP Snooping Querier

– IGMP Authentication

• IGMP Authentication
• MVR
• MLD Snooping

– MLD v1/v2 Snooping

– Fast Leave

– MLD Snooping Querier

– Static Group Config

– Limited IP Multicast

• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

VLAN

• VLAN Group

– Max 4K VLAN Groups

• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• Voice VLAN

Access Control List

• Time-based ACL
• MAC ACL

– Source MAC

– Destination MAC

– VLAN ID

– User Priority

– Ether Type

• IP ACL

– Source IP

– Destination IP

– Fragment

– IP Protocol

– TCP Flag

– TCP/UDP Port

– DSCP/IP TOS

– User Priority

• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy

– Mirroring

– Redirect

– Rate Limit

– QoS Remark

• ACL apply to Port/VLAN

Security

• IP-MAC-Port Binding

– DHCP Snooping

– ARP Inspection

– IPv4 Source Guard

• IPv6-MAC-Port Binding

– DHCPv6 Snooping

– ND Detection

– IPv6 Source Guard

• DoS Defend
• Static/Dynamic Port Security

– Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

– kbps/ratio/pps control mode

• IP/Port/MAC based access control
• 802.1X

– Port based authentication

– Mac based authentication

– VLAN Assignment

– MAB

– Guest VLAN

– Support Radius authentication and

accountability

• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications

– DHCPv6 Client

– Ping6

– Tracert6

– Telnet (v6)

– IPv6 SNMP

– IPv6 SSH

– IPv6 SSL

– Http/Https

– IPv6 TFTP

Management

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3

– Trap/Inform

– RMON (1, 2, 3, 9 groups)

• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• TL-SG2218 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
