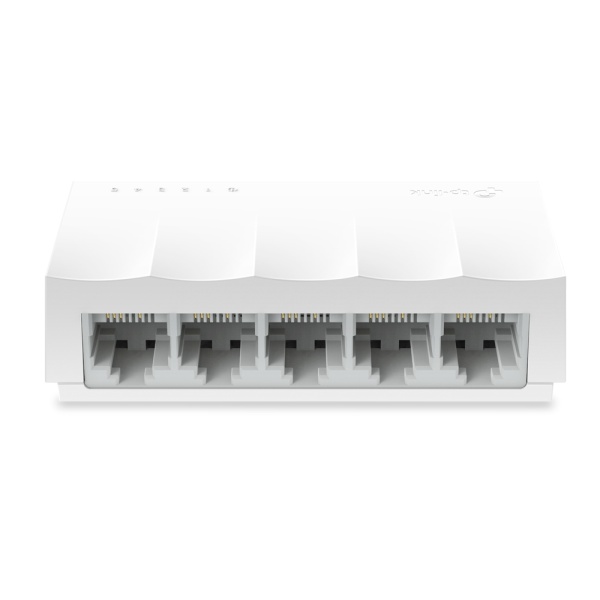

TP-LINK LS1005 LITEWAVE 5-PORT 10/100MBPS Desk Switch Desktop Plastic Case (TL-LS1005)
TP-LINK LS1005. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 5 V
Standards and Protocols
IEEE 802.3i/802.3u/802.3x
Interface

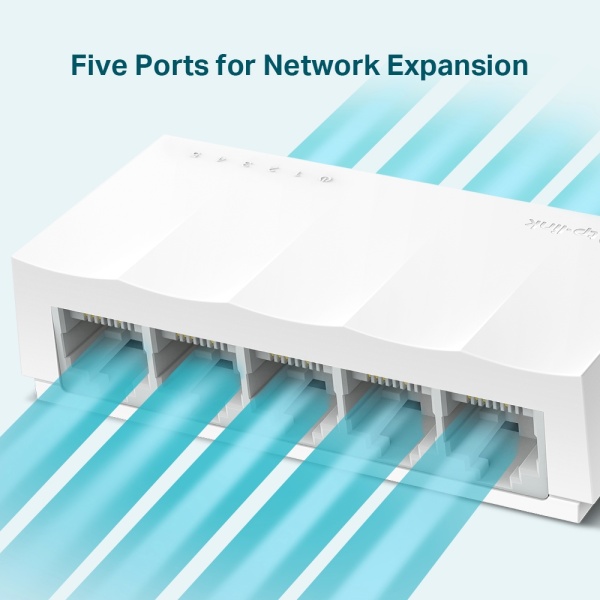

5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity

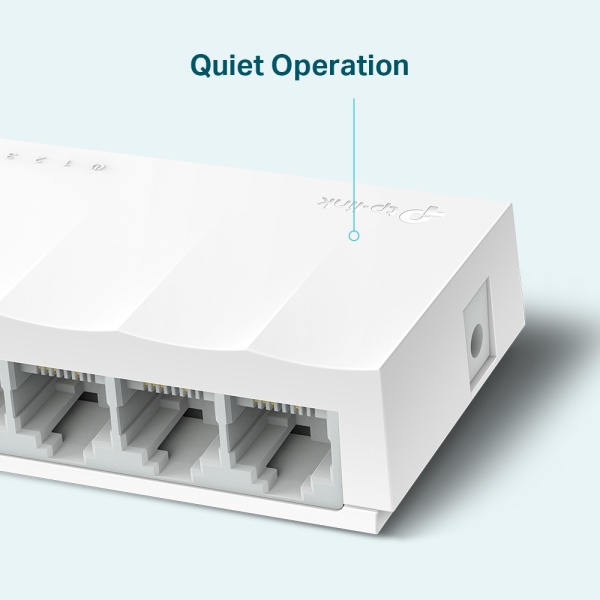

Fanless
External Power Supply
External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )
3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm)
Max Power Consumption
1.65W
Max Heat Dissipation
5.627 Btu/hr
SOFTWARE FEATURES
Advanced Features

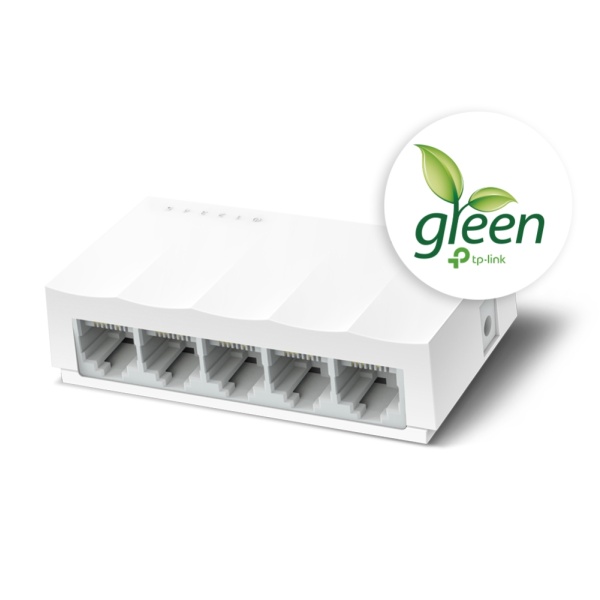

Green Technology
802.3X Flow Control
Back Pressure
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC, RoHS

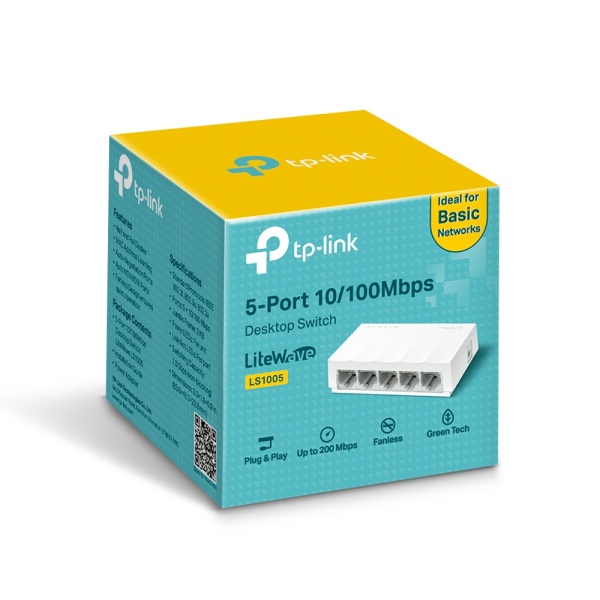

Package Contents
5-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
