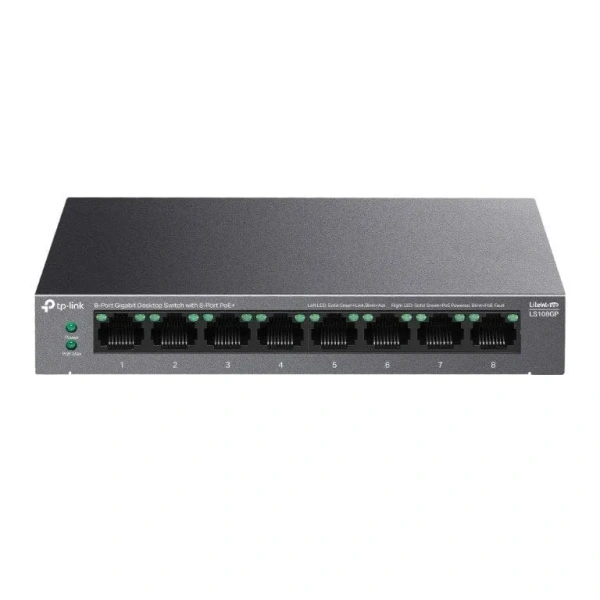

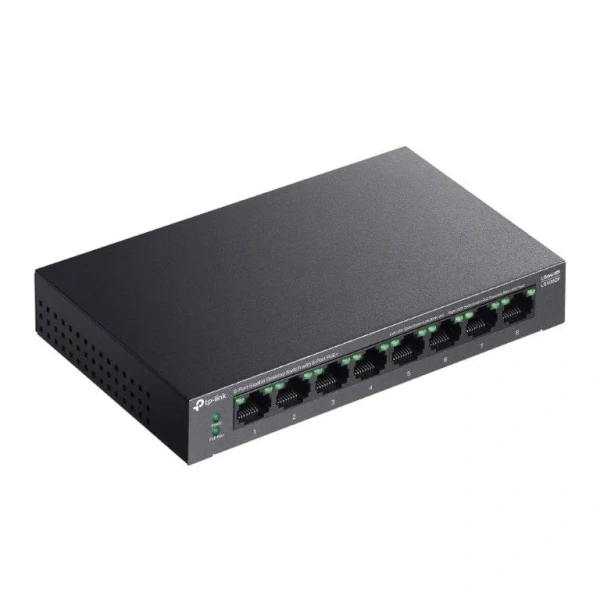

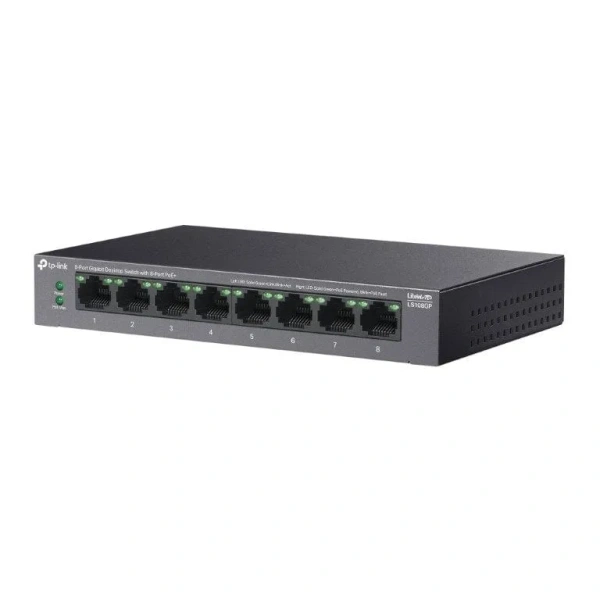

TP-Link LiteWave LS108GP 8-port PoE+ Gigabit Unmanaged Switch
Features
Full Gigabit Ports
- Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
62 W PoE Budget
- Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
Up to 250 m PoE Transmission
- With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery
- Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play
- Simply plug and play for instant connectivity with no configuration required.
Silent Operation
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design

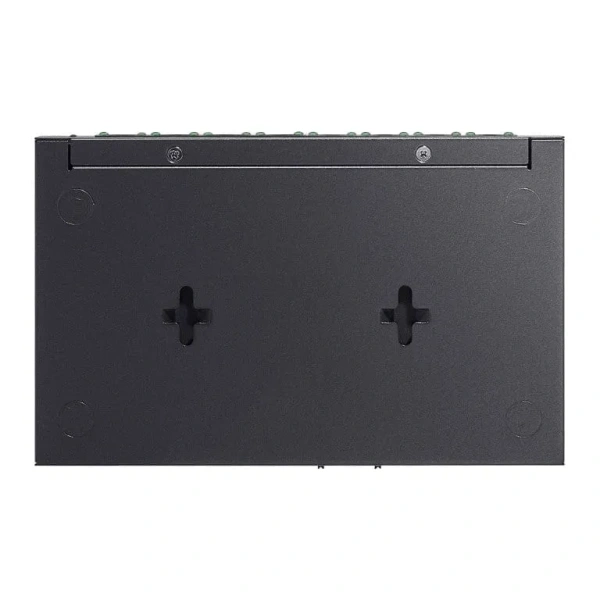

- Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Technical Specification
Interface
- 8x 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Installation
Installation
- Desktop
- Wall Mounting

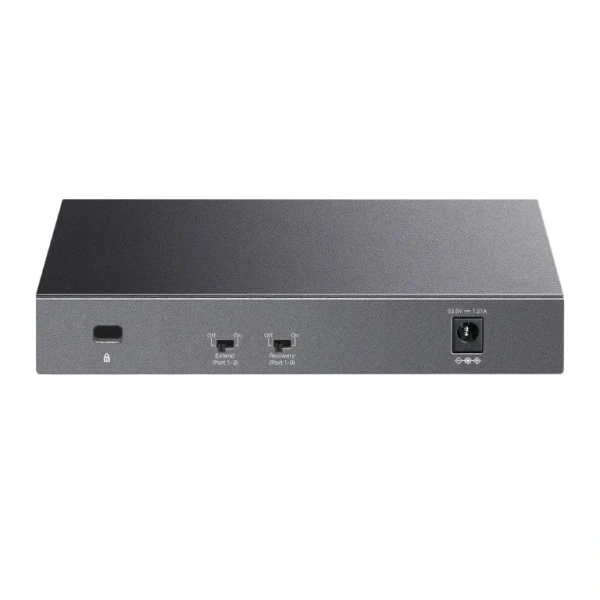

Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Ports (RJ45)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8, up to 30 W PoE output per port
- PoE Budget: 62 W
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
MAC Address Table: 4K
Jumbo Frame: 16 KB
Package Contents
- LS108GP
- Power Adapter
- Installation Guide
